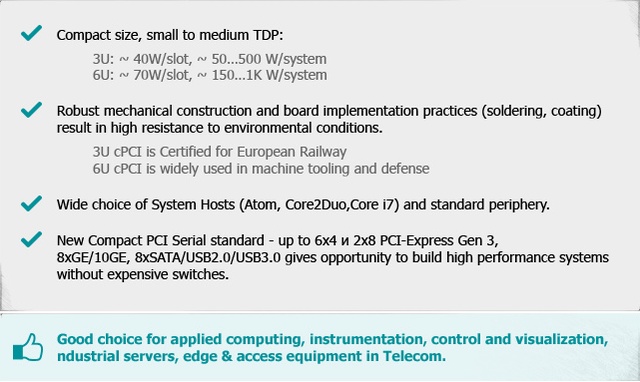

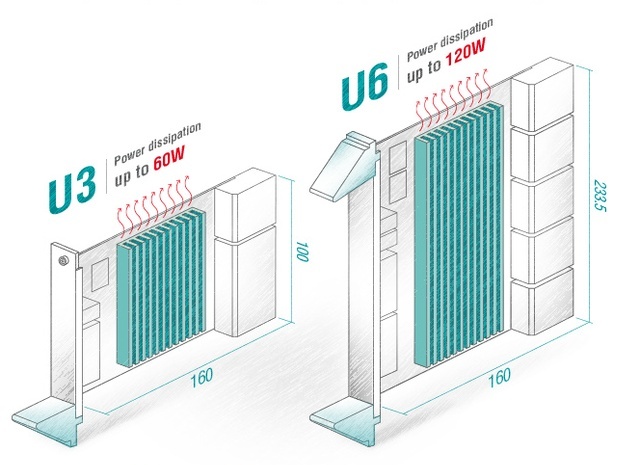

3U CompactPCI solutions, having all the advantages of modular systems, are distinguished by their compact size and high resistance to such environmental factors as vibration and shocks. Therefore such solutions are especially popular in transport, in special purpose systems and mobile measuring systems designed for various applications.
6U CompactPCI solutions are widely used in telecommunications sector, industrial automation, machine-tool industry and other industrial fields. Adjusted PICMG standards, well-proven technologies of using batch data transmission through Ethernet network (PICMG 2.16) and the hot swap (PICMG 2.1), together with an extensive set of peripheral boards, chassis, backplanes and power supply units produced by a large number of manufacturers, enable to quickly and efficiently build various purpose systems based on 6U СompactPCI.

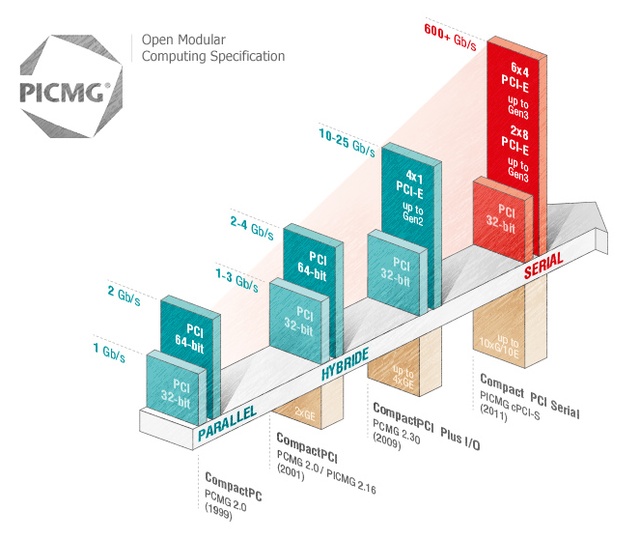

| Standards | Interconnects of data exchange between the modules within the system | ||||||
| PCI 32 bit | PCI 64 bit |
Ethernet, |
PCI Express |
Ethernet, |
USB | SATA | |
|
PICMG 2.0 (1999) |
1x master up to 7x periphery slots |
1x master up to 7x peripheral slots | — | — | — | — | — |
|
PICMG 2.16 (2001) |
— | — |
2x 10/100/1000 ports Base-T Ethernet |
— | — | — | — |
|
PICMG 2.16 (2001) |
1x master up to 7 peripheral slots | — | — |
4x channels 1x PCI Express 5 GHz |
2x ports 10/100/1000 Base-T Ethernet |
4x USB 2.0 ports |
4x SATA 300 channels |
|
PICMG 2.16 (2001) |
— | — |
2x ports 10/100/1000 Base-T Ethernet (6U only) |
2x channels x8, 6x channels x4, to PCI Express 8 GHz |
8x ports 10/100/1000/10- Gigabit Ethernet |
8x USB 2.0 ports, 8x USB 3.0 ports |
8x SATA channels 600 MB/sec |
Cross-compatibility of CompactPCI modules of various standards
| System controllers | Peripheral and coprocessor modules | |||
| PCIMG 2.0 (32 бит) | PCIMG 2.0 (64 бит) | PICMG 2.16 | PICMG cPCI-S | |
|
PCIMG 2.0 (32 bit) |
Yes | — | — | No |
|
PCIMG 2.0 (64 bit) |
Yes | Yes | — | No |
| PICMG 2.16 | — | — | Yes | No |
| PICMG 2.30 | Yes | No | — |
Yes, but with limitations |
| PICMG cPCI-S |
Implementation is available in customized |
Implementation is available in customized |
Yes, for 6U only | Yes |
