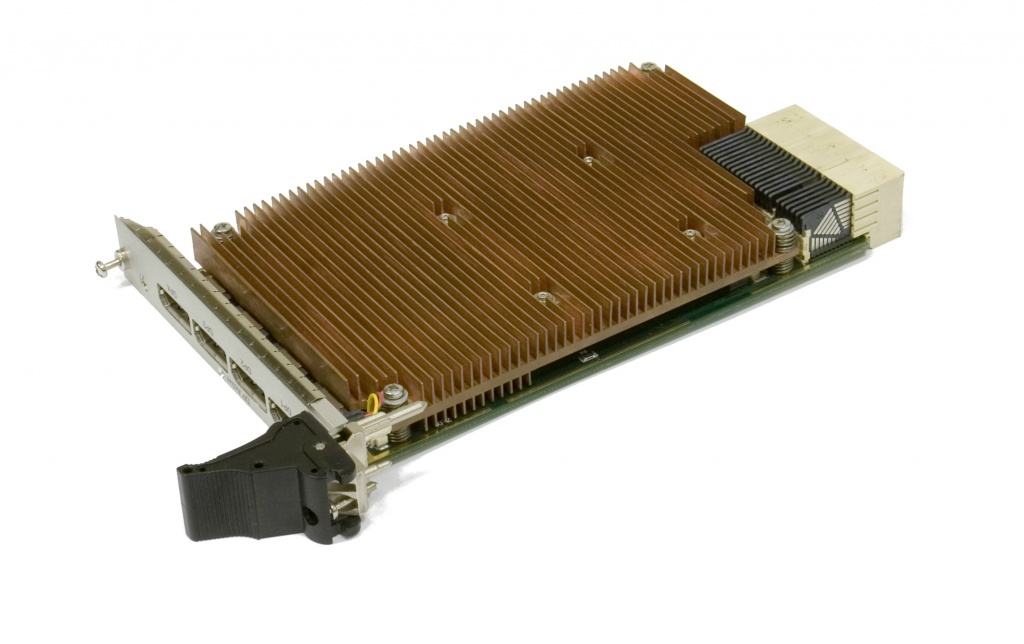

3U CompactPCI Graphics Controller Module

VIM556

•    NVIDIA Quadro K2100M: Graphics Controller Module: 665 MHz, 576 CUDA cores
•    RAM: 2 GB GDDR5, 128 bit, 48 GB/s
•    Graphics: 2X3840X2160 @ 60 Hz
•    DisplayPort: 4x DisplayPort interfaces on the front panel
•    Power supply: Supply voltage: +12 V ± 10%
•    OS compatibility: Windows 7 Professional 32/64 bit, Windows Embedded
      Standard 7 32/64 bit; Linux Debian 7.0 32 bit, Astra Linux 64 bit
•    Operating temperature range:
      Commercial version: from 0 to +70° С;
      Industrial version: from –20 to +70° С
      Version with conduction cooling: from –20 to +55°С
•    MTBF: No less than 250 000 hours

Overview Downloads Order Info Sales & technical support

VIM556 3U CompactPCI Graphics Controller Module is designed for using as part of the 3U CompactPCI Serial embedded computing systems and is intended for output of graphic information to the display via DisplayPort interface. VIM56 contains NVIDIA Quadro K2100M graphics card of MXM 3.0 standard with support of CUDA parallel computing architecture. Using VIM556 module, computing system is able to carry out high-performance multi-threaded computations and output high-resolution graphic information to several displays (up to 4) simultaneously using DisplayPort interface. There are several VIM556 versions, both equipped with the graphics card, and implemented with conduction cooling.

Datasheet (PDF 0.25 MB)

VIM556_v1.2_2manual.pdf (PDF 2.09 MB)

VIM556 - 01

Graphics card: NVIDIA Quadro K2100M, Size: 4HP, Cooling: Air cooling, Temperature range, °С: from 0 to +70

VIM556 - 02

Graphics card: NVIDIA Quadro K2100M, Size: 4HP, Cooling: Air cooling, Temperature range, °С: from –20 to +70

VIM556 - 03

Graphics card: NVIDIA Quadro K2100M, Size: 5HP, Cooling: Conduction cooling, Temperature range, °С: from –20 to +55

\Coated

Conformal coating

Cables and connectors

Components for embedded systems design
