Mezzanine COM Express Basic Intel BroadWell-H 47W CPU Module

CPC1302

•    64-x bit Intel BroadWell-H 47W 13 nm (37W CTDP)
•    5th Generation Intel® Core™ i7 Processor
      or Intel Core i5-4422E 4th Gen 25W 22nm (Haswell Refresh)
•    PCH Intel QM87
•    Switching output voltages/currents 60 V/ 500 mA
      (by differential load connection)
•    LED indication of requests (addressing)
•    Maximum switch on/switch off time: 3 ms
•    Galvanic isolation of inputs between channels: 500 V
•    Galvanic isolation of inputs between a channel
      and the “ground”: 1000 V
•    Control of output states (before insulation)
•    Six separated lines of hardware interrupts
•    Software compatibility with: FDOS, FreeDOS

Overview Downloads Order Info Sales & technical support

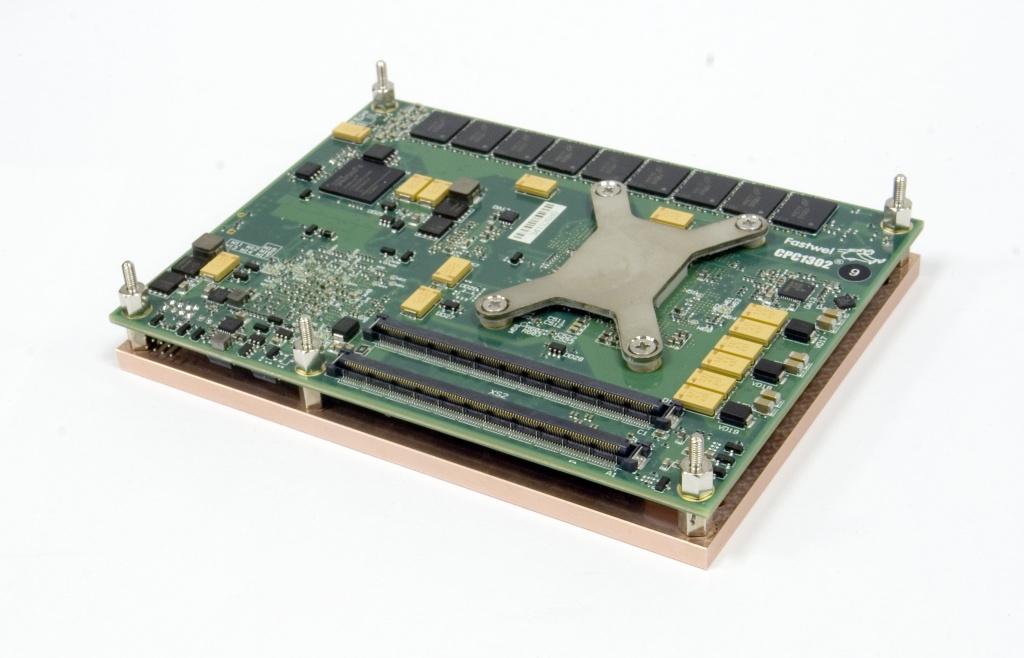

CPC 1302 Mezzanine COM Express Basic CPU Module is compatible with the x86 family. CPC1302 is used mainly as a compute core (which also has a wide range of I/O interfaces) while building real-time systems, onboard systems, security and communication tools, production control and high-speed data acquisition equipment as well as for other mission critical applications, designed for operation in harsh environments. Connection with carrier-board is carried out via two standard two-row
high-density connectors (COM Express Type 6 Connector, SMT, 220 pin).

Datasheet (PDF 0.75 MB)

CPC1302-UM_.pdf (PDF 3.5 MB)

CPC1302-01

COM Express Module, type 6, Intel Core i5 4th 1.6 GHz

CPC1302-03

COM Express Module, type 6, Intel Broadwell-H
