Intel® Core™ 2 Duo 3U CompactPCI SBC

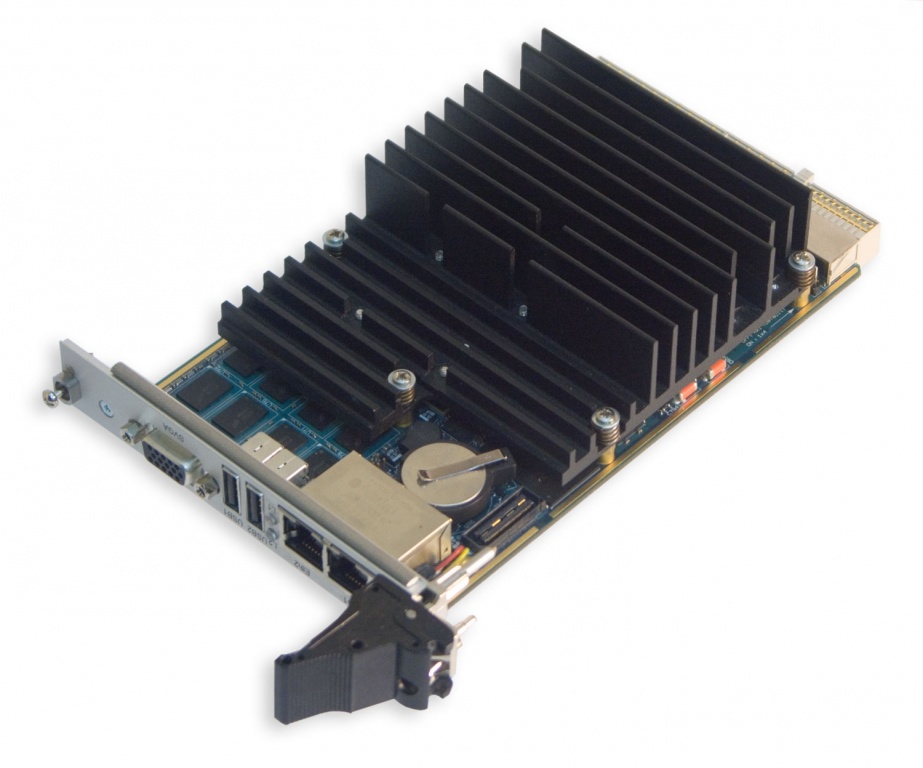

CPC504 is a CompactPCI PICMG 2.0 compliant host processor module based on low power dual core Intel Сore 2 Duo CPUs operating at 1.6 GHz or 2.2 GHz with 4 MB level 2 cache and featuring 800 MHz system bus. The processor executes up to 8 floating point operations per clock cycle and can
address up to 4 GB of soldered DDR2 system memory in 64bit mode.

An increased heatsink for CPU and chipset cooling with effective surface area of up to 682 cm2 allows efficient heat dissipation within wide ambient air temperature range.

For highspeed data exchange CPC504 employs two Gigabit Ethernet channels, four x1 PCI-Express lanes, and 32-bit PCI bus. The graphics controller of Intel 965GME supports output of two independent video streams to VGA and LVDS interfaces or to two DVI-D interfaces available at MIC588 mezzanine expansion module.

The firmware of CPC504 supports booting from LAN, from the onboard SD cards, from soldered 4 GB flash memory disk, or from SATA II (up to 300 MB/s) and IDE drives located on MIC584 mezzanine expansion module or on a rear I/O module.

The MIC584 mezzanine module supports two SATA II interfaces with option to mount either SATA DOM solidstate modules or one standard 1.8" SATA disk drive. Six COM ports, two USB 2.0, PS/2, and audio interfaces are available via the MIC584 module as well.

CPC504 supports Windows XP/XP Embedded, Linux, and QNX operating systems.
