PC/104-Plus Communication and Navigation Module

CNM350

•    PC/104-Plus Communication and Navigation Module
•    PC/104-Plus compliance
•    4-band GSM 850/900/1800/1900 modem,
•    GPRS/EDGE Class 10
•    Two SIM card support
•    GPS/GLONASS receiver, 16 channels
•    QNX4.25/6.4, Linux, Microsoft XP Embedded/CE
•    Operating temperature range: –40...+85°С (IEC 68-2-14-84)

Overview Downloads Order Info Sales & technical support

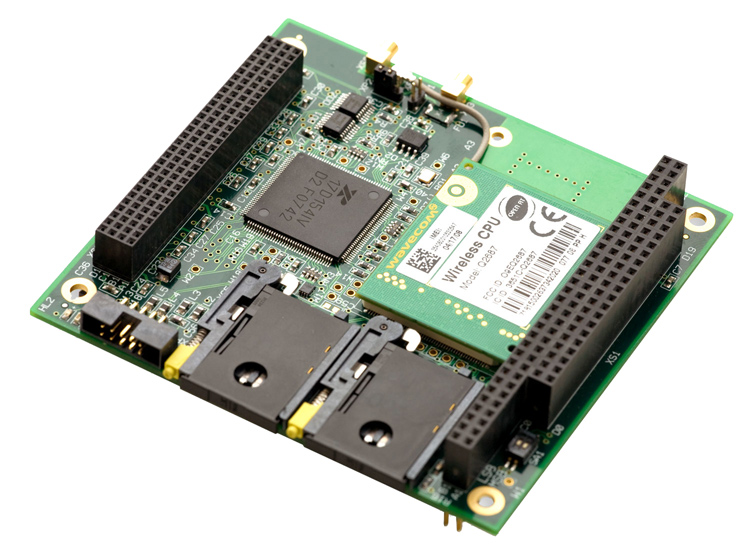

CNM350 is a PC/104-Plus navigation and communication expansion module.

It includes a navigation module operating in L1 ranges of GPS/GLONASS systems allowing to determine position, speed and time.

Another subsystem of CNM350 is a GSM communication module capable to operate in 850/900/1800/1900 frequency ranges; it supports two SIMcards, CSD and GPRS/EDGE technologies for data and voice transmission.

Datasheet (PDF 0.31 MB)

CNM350manual.pdf (PDF 0.8 MB)

CNM350-01

PC/104 module Quad-band GSM GPRS/EDGE-enabled module with GPS/GLONASS Receiver

CNM350-02

PC/104 communication module GSM GPRS/EDGE

CNM350-03

PC/104 navigation module GPS / GLONASS

Cables and connectors

Components for embedded systems design
